£6.48 ex. VAT

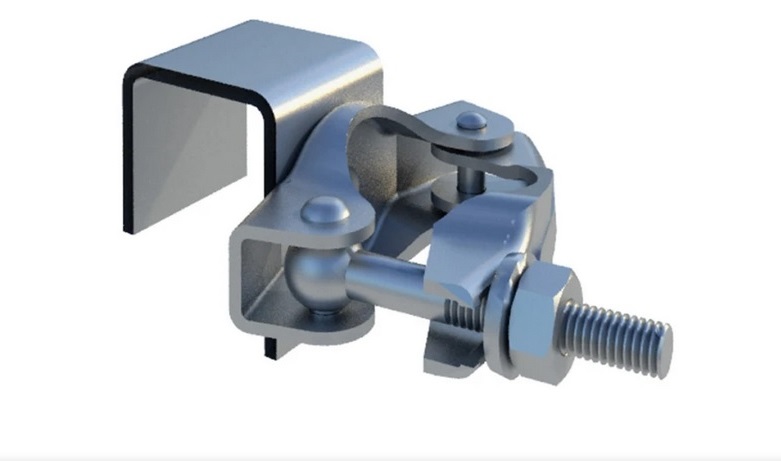

The Hoarding to Scaffold Coupler is the simple, purpose-made fitting that ties your site hoarding back to a rigid scaffold frame. One side clamps onto the hoarding panel, the other grips a 48.3mm scaffold tube, and together they lock the panel in place so it resists wind loading, shrugs off accidental knocks, and stays exactly where you put it. Pressed from galvanised steel to survive months of British weather, it fits in seconds with nothing more than a standard scaffold spanner, no drilling, no special kit, and comes off cleanly for reuse when the job’s done. It’s the standard, no-nonsense way to brace a hoarding line properly, whether you’re screening a city-centre build, a demolition plot or an outdoor event.
Hoarding on its own is only as stable as whatever is holding it up. Standing a run of panels in feet alone and a strong gust, a knock from a passing load, or someone leaning on it can shift the whole line. This coupler solves that. One half clamps onto the hoarding panel, the other grips a 48.3mm scaffold tube, and together they lock the panel back to a rigid frame.
The result is a perimeter that stays where you put it. It resists wind loading, shrugs off accidental impacts, and makes the boundary far harder to push over or lever open, which matters just as much for keeping the public safely out as it does for keeping your site secure overnight. It’s the standard way to brace site hoarding properly, whether you’re screening a city-centre build, a demolition plot or an outdoor event.
You may also see this fitting called a hoarding clamp, a scaffold tube-to-hoarding fitting or, in some catalogues, the DK90.
| Specification | Detail |
| Product | Hoarding to Scaffold Coupler (single unit) |
| Material | Pressed steel, galvanised. |
| Tube compatibility | 48.3mm diameter |
| Height (approx.) | 52mm |
| Width (approx.) | 140mm |
| Depth (approx.) | 170mm |
| Weight (approx.) | 1.6kg |
| Load bearing | No (perimeter stability only) |
| Fixing | Integral bolt, scaffold spanner |
| Condition | New |
| Standards | BS 2482:2009 |
The coupler is pressed from steel and galvanised, so the zinc coating holds off rust and corrosion through months of British weather. There’s nothing to perish or work loose on its own: a solid clamping body and an integral bolt that you simply nip up tight. Because it’s a fit-and-forget fitting, it’ll happily stay on a long-term hoarding line through autumn and winter and still come off cleanly when the job ends.
You don’t need power tools, a special kit or a trained scaffolder to use it. Position the scaffold tube against the panel where you want the brace, hook the coupler over both, and tighten the bolt with a standard scaffold spanner until it’s firmly closed. No holes, no fixings to source, no waiting around, which is exactly what you want when you’re putting up a long run against the clock.
As a rule of thumb, fit one coupler near the top and one near the bottom where each panel meets a scaffold upright, so every panel is tied at both ends. On taller runs or in exposed, high-wind locations, you’ll want more, adding intermediate couplers up the tube spreads the load and stops panels from flexing or gapping. The right number always depends on your site’s temporary works design or your engineer’s guidance, so treat this as a starting point rather than a fixed figure. Buying for a full perimeter? Get in touch for bulk pricing before you order.
The price shown is per single coupler, so you can buy exactly the number your run needs rather than a fixed pack. For a full perimeter, you’ll usually be ordering them by the dozen, so it’s worth contacting us before you check out, we can sort bulk pricing and make sure the right quantity arrives together rather than in separate deliveries.
A standard double or swivel coupler is made to join one scaffold tube to another. This fitting is shaped specifically so that one side clamps a flat hoarding panel while the other grips the round tube, a job a tube-to-tube coupler can’t do securely. Using the purpose-made hoarding coupler means a proper, flush grip on the panel rather than an improvised fixing that can slip.
Yes, the bolt is built into the coupler, so there are no separate nuts or fixings to buy. You tighten it with the same type of scaffold spanner used across standard scaffold fittings (commonly a 7/16″ head), so if you’ve got a scaffolding kit on site, you almost certainly already have the right tool in the bag.
They’re designed to come off cleanly when you strike the hoarding, so undamaged couplers can go straight back in the stillage and be reused on the next site. As with any galvanised fitting, give them a quick check before refitting and set aside any that are bent, stripped or seized rather than forcing them back into service.
No drilling. The coupler clamps onto the outer frame or edge of the hoarding panel and closes down onto it as you tighten the bolt, so the panel stays intact, and you can reposition the brace anywhere along the tube. That’s part of why it’s so quick to fit and just as quick to move if the site layout changes.
It’s designed first and foremost for steel hoarding panels, but the clamping action will hold other panel types, timber, ply or composite, wherever the panel edge or framing lets the coupler close securely on it. If you’re bracing non-standard hoarding, it’s worth trialling a couple of fixings first to confirm you’re getting a solid, no-movement grip before you kit out the whole run.
